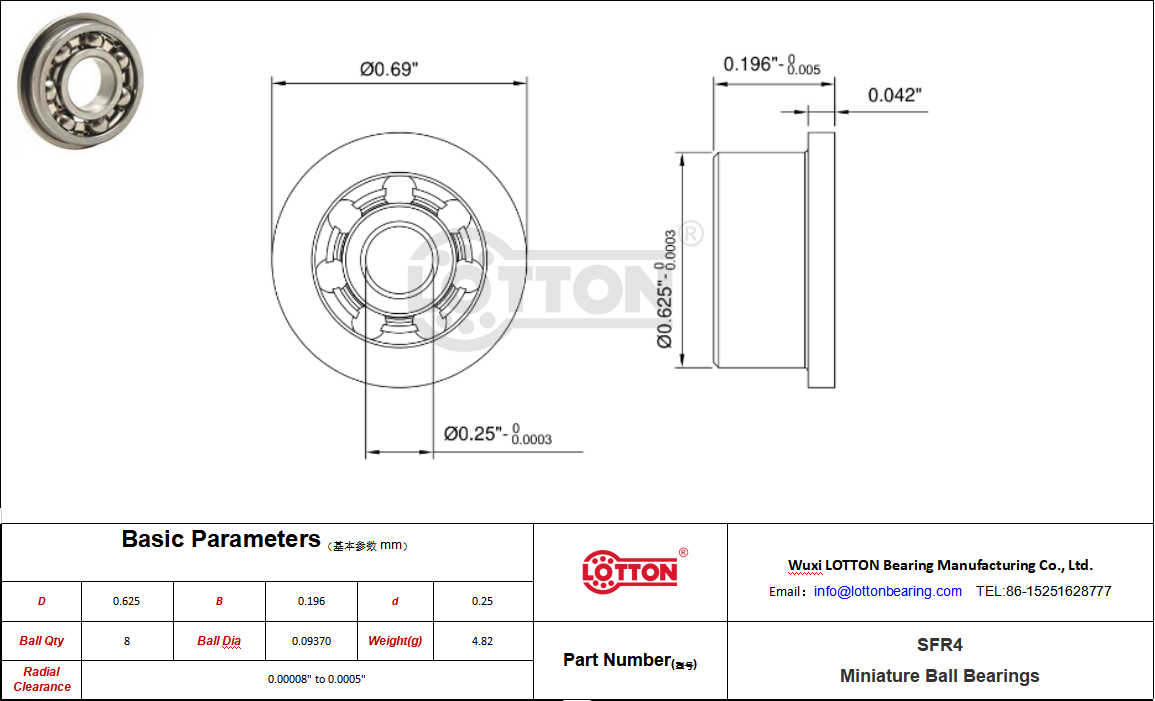

| Product Number | SFR4 Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single row |
| Seal Type | open |
| Bore Dia | 0.25" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.625" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.196" |
| Width Tolerance | -0.005" to 0" |
| Flange Outer Dia | 0.69" |
| Flange Thickness | 0.042" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Shield Material | |
| Dynamic Radial Load | 255lbf |
| Static Radial Load | 101 lbf |
| Max Speed (X1000 rpm) | 34.2 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.09370" |
| Ball Qty | 8 |
| Weight | 4.82g |
| NMB | DDRF-4 |
| GRW | SSF1/4A |
| McMaster-Carr ABEC5 | 57155K305 |
| NHBB | SSRF-4 |
| EZO | FR4H |
| McMaster-Carr ABEC7 | 4259T16 |
| DYNAROLL | SFR4 |
| FAG | SFR4 |
| RMB | RK8020X |
| MPB | SR4FC |
| LOTTON | SFR4 |
| McMaster-Carr ABEC1 | |
| BARDEN | SFR4 |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | BARDEN | FAG | NMB | EZO | McMaster-Carr ABEC7 | McMaster-Carr ABEC5 | NHBB | GRW |
SFR4 | SFR4 | SFR4 | SFR4 | DDRF-4 | FR4H | 4259T16 | 57155K305 | SSRF-4 | SSF1/4A |
| MPB | RMB |
SR4FC | RK8020X |
