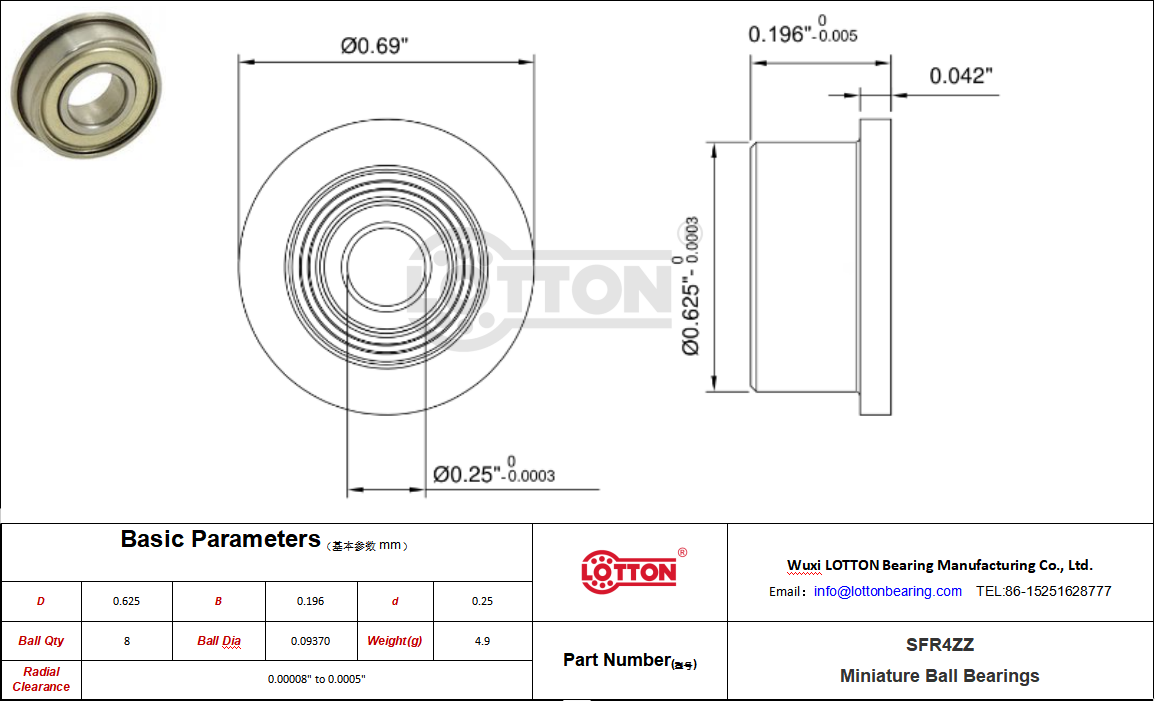

| Product Number | SFR4ZZ Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single row |
| Seal Type | metal dust cover |
| Bore Dia | 0.25" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.625" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.196" |
| Width Tolerance | -0.005" to 0" |
| Flange Outer Dia | 0.69" |
| Flange Thickness | 0.042" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Shield Material | 300 series stainless steel |
| Dynamic Radial Load | 255lbf |
| Static Radial Load | 101 lbf |
| Max Speed (X1000 rpm) | 34.2 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.09370" |
| Ball Qty | 8 |
| Weight | 4.9g |
| NMB | DDRF-4ZZ |
| GRW | SSF1/4A-2Z |
| McMaster-Carr ABEC5 | 57155K324 |
| NHBB | SSRF-4ZZ |
| EZO | SFR4ZZ |
| McMaster-Carr ABEC7 | 4262T37 |
| DYNAROLL | SFR4ZZ |
| FAG | SRF42Z |
| RMB | |
| MPB | SR4FCHH |
| LOTTON | SFR4ZZ |
| McMaster-Carr ABEC1 | |
| BARDEN | SFR4SS |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | NMB | McMaster-Carr ABEC7 | McMaster-Carr ABEC5 | NHBB | GRW | BARDEN | MPB |
| SFR4ZZ | SFR4ZZ | SFR4ZZ | DDRF-4ZZ | 4262T37 | 57155K324 | SSRF-4ZZ | SSF1/4A-2Z | SSF1/4A-2Z | SR4FCHH |
FAG |
SRF42Z |
