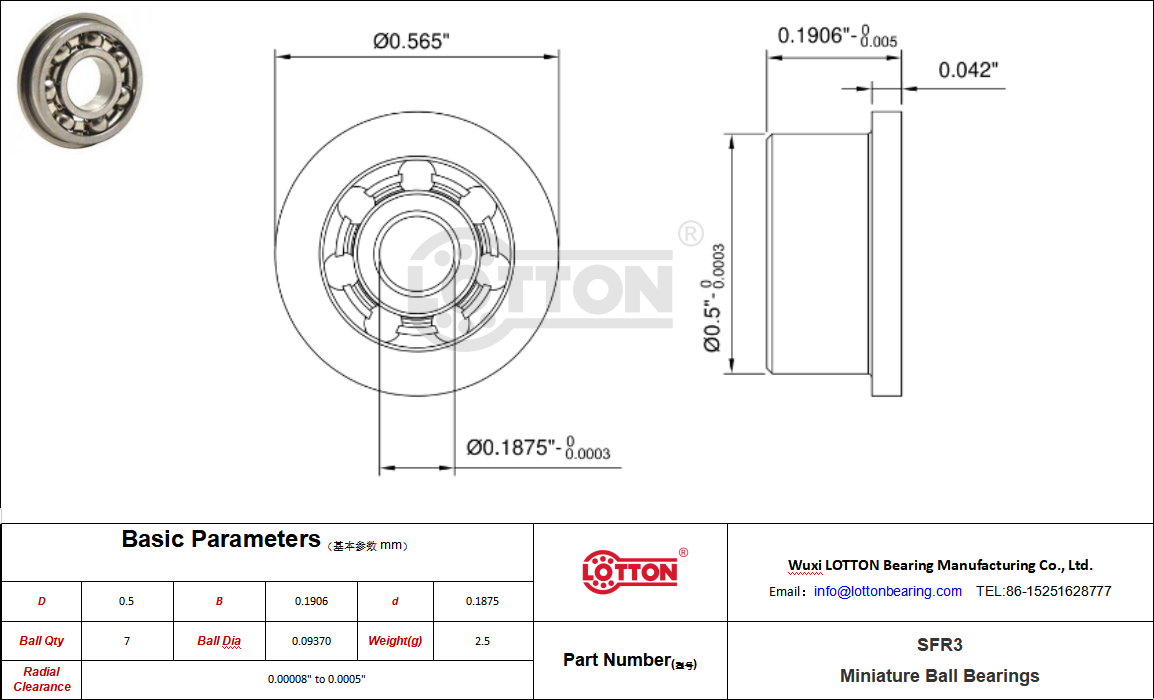

| Product Number | SFR3 Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single row |
| Seal Type | open |
| Bore Dia | 0.1875" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.5" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.1906" |
| Width Tolerance | -0.005" to 0" |
| Flange Outer Dia | 0.565" |
| Flange Thickness | 0.042" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Shield Material | |
| Dynamic Radial Load | 224 lbf |
| Static Radial Load | 79 lbf |
| Max Speed (X1000 rpm) | 38.7 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.09370" |
| Ball Qty | 7 |
| Weight | 2.5g |
| NMB | DDRF-3 |
| GRW | SSF3/16 |
| McMaster-Carr ABEC5 | 57155K302 |
| NHBB | SSRF-3 |
| EZO | FR3H |
| McMaster-Carr ABEC7 | 4259T13 |
| DYNAROLL | SFR3 |
| FAG | SRF3 |
| RMB | RKT6016X |
| MPB | SR3FC |
| LOTTON | SFR3 |
| McMaster-Carr ABEC1 | |
| BARDEN | SFR3X3 |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | FAG | NMB | EZO | McMaster-Carr ABEC7 | McMaster-Carr ABEC5 | NHBB | GRW | BARDEN |
| SFR3 | SFR3 | SFR3 | DDRF-3 | FR3H | 4259T13 | 57155K302 | SSRF-3 | SSF3/16 | SFR3X3 |
| MPB | RMB |
SR3FC | RKT6016X |
