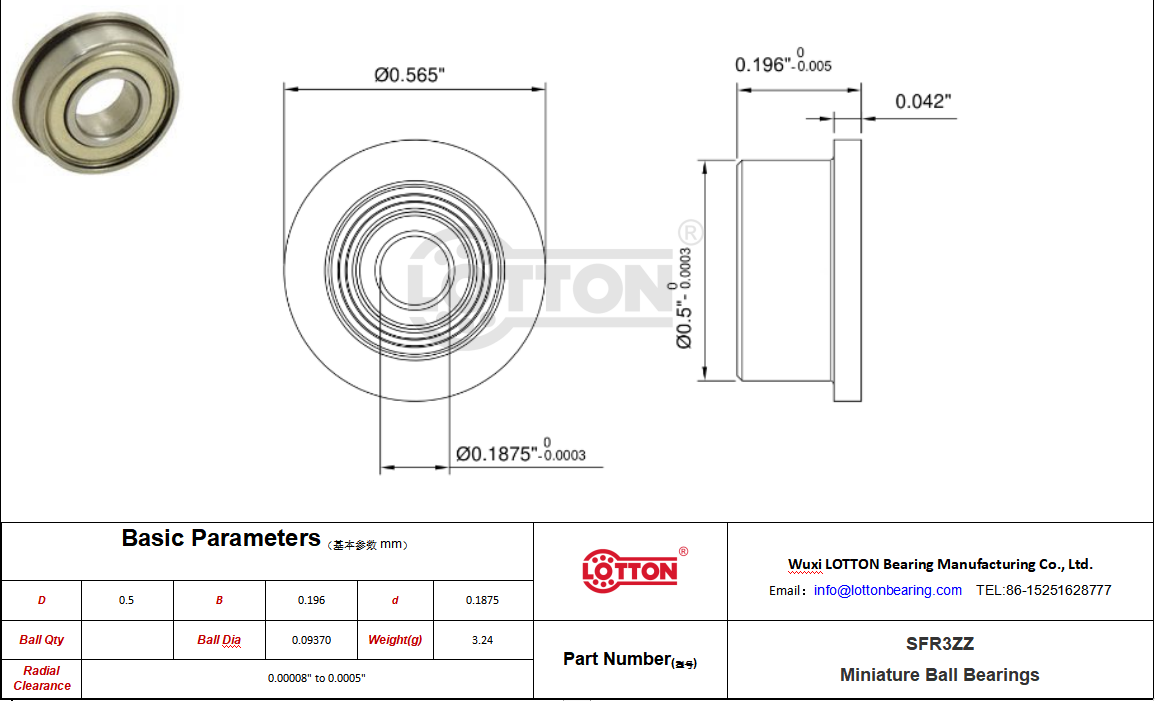

| Product Number | SFR3ZZ Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single row |
| Seal Type | metal dust cover |
| Bore Dia | 0.1875" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.5" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.196" |
| Width Tolerance | -0.005" to 0" |
| Flange Outer Dia | 0.565" |
| Flange Thickness | 0.042" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Shield Material | 300 series stainless steel |
| Dynamic Radial Load | 224 lbf |
| Static Radial Load | 79 lbf |
| Max Speed (X1000 rpm) | 38.7 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.09370" |
| Ball Qty | 7 |
| Weight | 3.24g |
| NMB | DDRF-3ZZ |
| GRW | SSF3/16-2Z |
| McMaster-Carr ABEC5 | 57155K321 |
| NHBB | SSRF-3ZZ |
| EZO | SFR3ZZ |
| McMaster-Carr ABEC7 | 4262T34 |
| DYNAROLL | SFR3ZZ |
| FAG | SRF32Z |
| RMB | |
| MPB | SR3FCHH |
| LOTTON | SFR3ZZ |
| McMaster-Carr ABEC1 | |
| BARDEN | SFR3SS |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | NMB | McMaster-Carr ABEC7 | McMaster-Carr ABEC5 | NHBB | GRW | BARDEN | MPB |
SFR3ZZ | SFR3ZZ | SFR3ZZ | DDRF-3ZZ | 4262T34 | 57155K321 | SSRF-3ZZ | SSF3/16-2Z | SFR3SS | SR3FCHH |
FAG |
| SRF32Z |
