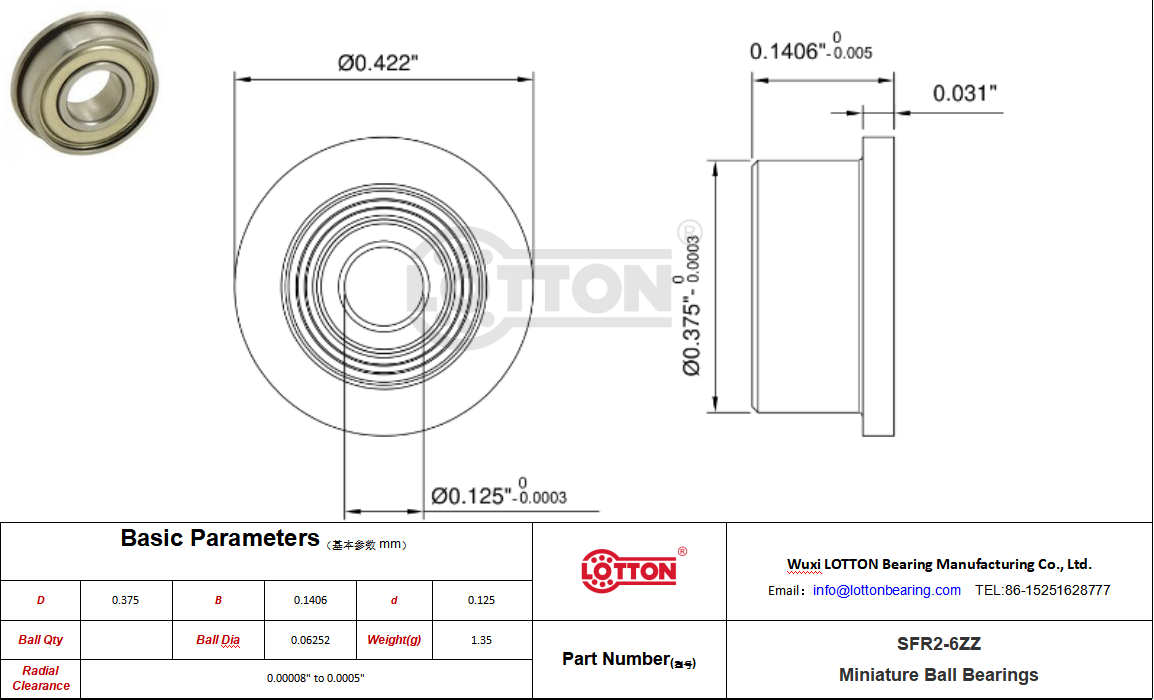

| Product Number | SFR2-6ZZ Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single row |
| Seal Type | metal dust cover |
| Bore Dia | 0.125" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.375" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.1406" |
| Width Tolerance | -0.005" to 0" |
| Flange Outer Dia | 0.422" |
| Flange Thickness | 0.031" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Shield Material | 300 series stainless steel |
| Dynamic Radial Load | 110lbf |
| Static Radial Load | 37 lbf |
| Max Speed (X1000 rpm) | 47.7 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (Available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.06252" |
| Ball Qty | 7 |
| Weight | 1.35g |
| NMB | DDRIF-618SS |
| GRW | SSF1/8A/6-2Z |
| McMaster-Carr ABEC5 | 57155K315 |
| NHBB | SSRIF-618ZZ |
| EZO | SFR2-6ZZS |
| McMaster-Carr ABEC7 | |
| DYNAROLL | SFR2-6ZZS |
| FAG | SRF08242Z |
| RMB | |
| MPB | S618FCHH |
| LOTTON | SFR2-6ZZ |
| McMaster-Carr ABEC1 | |
| BARDEN | SFR2-6SS |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | NMB | McMaster-Carr ABEC5 | NHBB | GRW | BARDEN | MPB | FAG |
SFR2-6ZZ | SFR2-6ZZS | SFR2-6ZZS | DDRIF-618SS | 57155K315 | SSRIF-618ZZ | SSF1/8A/6-2Z | SFR2-6SS | S618FCHH | SRF08242Z |
