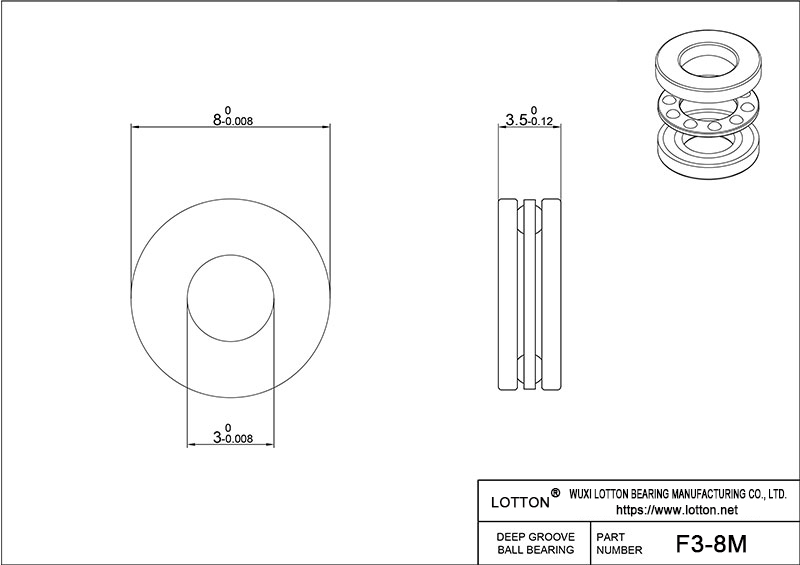

| Product Number | F3-8M |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Washers Type | grooved raceway |
| For Load Direction | Thrust |
| Seal Type | Open |
| Bore Dia | 3 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 8 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Housing Washer ID | 3.2 mm |
| Shaft Washer OD | 7.8 mm |
| Height | 3.5 mm |
| Height Tolerance | -0.12mm to 0 |
| Washer Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | Bronze |
| Dynamic Thrust Load | 600 N |
| Static Thrust Load | 480 N |
| Max Speed (X1000 rpm) | 11 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 1.588 mm |
| Ball Qty | 6 |
| Weight | 0.9 g |
| LOTTON | F3-8M |
| DYNAROLL | F3-8M |
| SKF | BA3 |
| MCMASTER | 7806K53 |
