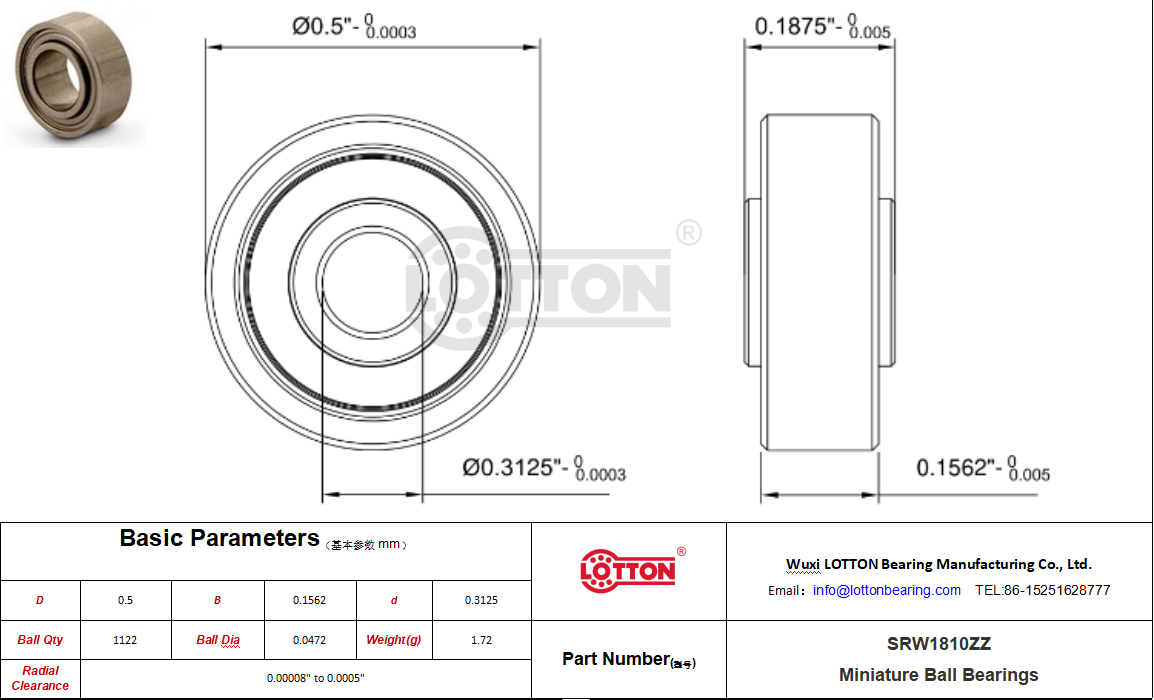

| Product Number | SRW1810ZZ Bearing |
| metering system | imperial |
| Bearing type | ball |
| load direction | Radial |
| structure | single column |
| Inner ring type | lengthen |
| Seal type | metal dust cover |
| inside diameter | 0.3125" |
| Inner diameter tolerance | -0.0003" to 0" |
| outer diameter | 0.5" |
| outer diameter tolerance | -0.0003" to 0" |
| width | 0.1562" |
| Width Tolerance | -0.005" to 0" |
| Inner ring outer diameter | 0.362" |
| inner ring width | 0.1875" |
| ferrule material | 440C stainless steel |
| ball material | 440C stainless steel |
| cage material | 300 series stainless steel |
| dynamic radial load | 94 lbf |
| static radial load | 45lbf |
| Maximum speed | 36 |
| lubricant | Lubricated |
| installation method | push-in |
| temperature range | -86 to 230°F |
| ABEC grade | ABEC1 (ABEC3/5/7 optional) |
| Radial clearance class | MC3 (available in MC1/2/4/5/6) |
| Clearance range | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball diameter | 0.0472" |
| number of balls | 12 |
| weight | 1.72g |
| NMB | DDRI-8516ZZEE |
| GRW | |
| McMaster-Carr ABEC5 | |
| NHBB | SSRI-8516ZZEE |
| EZO | SRW1810ZZS |
| McMaster-Carr ABEC7 | |
| DYNAROLL | SRW1810ZZS |
| FAG | |
| RMB | |
| MPB | S8516CHHE |
| LOTTON | SRW1810ZZ |
| McMaster-Carr ABEC1 | 57155K389 |
| BARDEN | |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | NMB | NHBB | MPB | McMaster-Carr |
SRW1810ZZ | SRW1810ZZS | SRW1810ZZS | DDRI-8516ZZEE | SSRI-8516ZZEE | S8516CHHE | 57155K389 |
