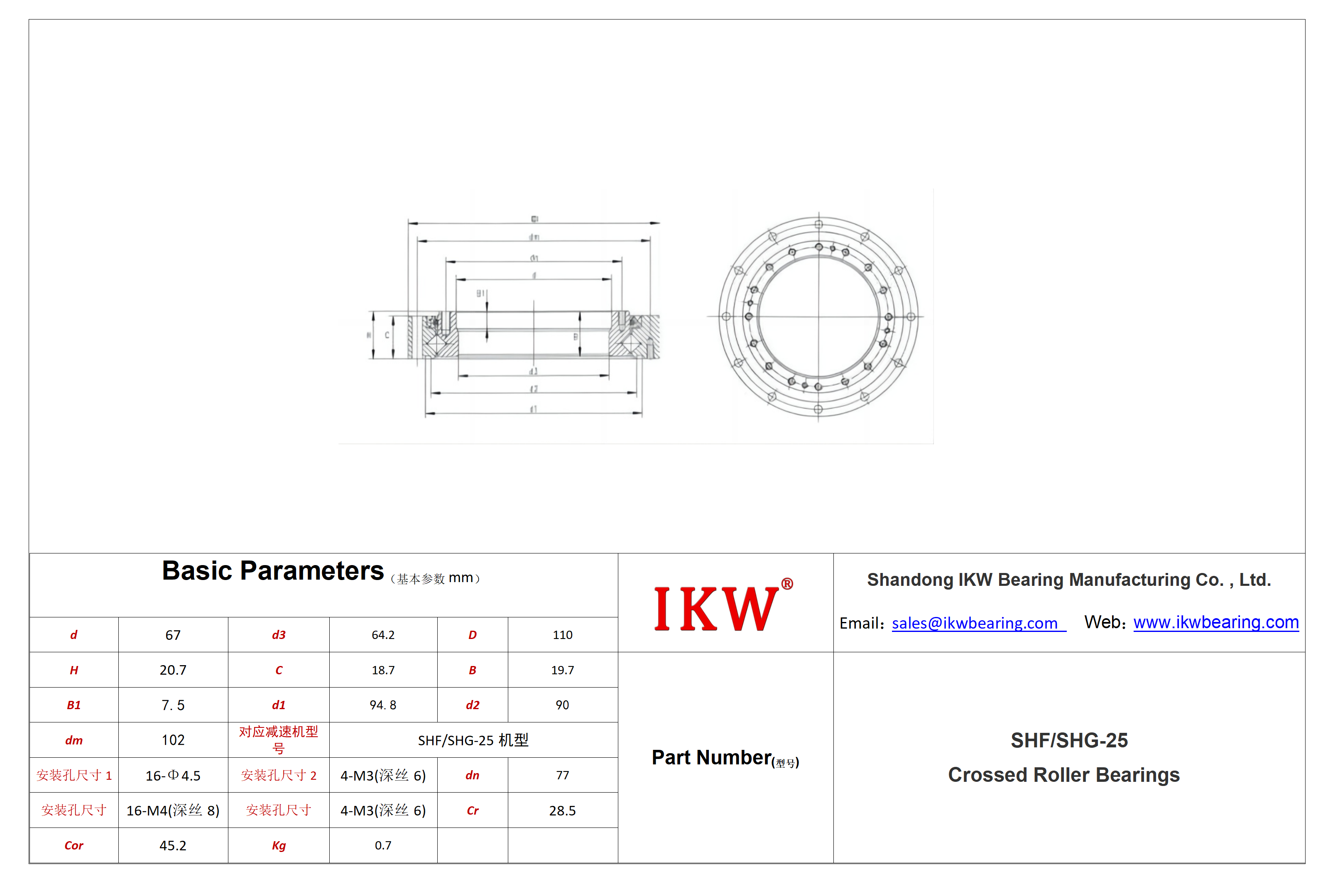

| Product Number | SHF/SHG-25 Bearing |
| d | 67 |
| d3 | 64.2 |
| D | 110 |
| H | 20.7 |
| C | 18.7 |
| C1 | |
| T | |
| B | 19.7 |
| B1 | 7.5 |
| H2 | |
| D1 | |
| D2 | |
| d1 | 94.8 |
| d2 | 90 |
| Dm | |
| dm | 102 |
| 外安装孔尺寸1 | 16-Φ4.5 |
| 外安装孔尺寸2 | |
| 中安装孔尺寸 | 4-M3(深丝6) |
| dn | 77 |
| 内安装孔尺寸1 | |
| 中安装孔尺寸 | 16-M4(深丝8) |
| 中安装孔尺寸 | 4-M3(深丝6)` |
| dL | |
| 内安装孔尺寸2 | |
| rmin | |
| rmin(内) | |
| rmin(外） | |
| Dwp | |
| Z-Dw | |
| Cr(kN) | 28.5 |
| Cor(kN) | 45.2 |
| Kg | 0.7 |
| 对应减速机型号 | SHF/SHF-25 机型 |
| Fw | |
| Ew | |
| Bc | |
| Rsmin | |
| RV减速器型号 | |
| GB轴承型号 | |
| 最大径向变形量 | |
| 输入转速 | |
| 输出力矩 | |
| 谐波减速器型号 |
