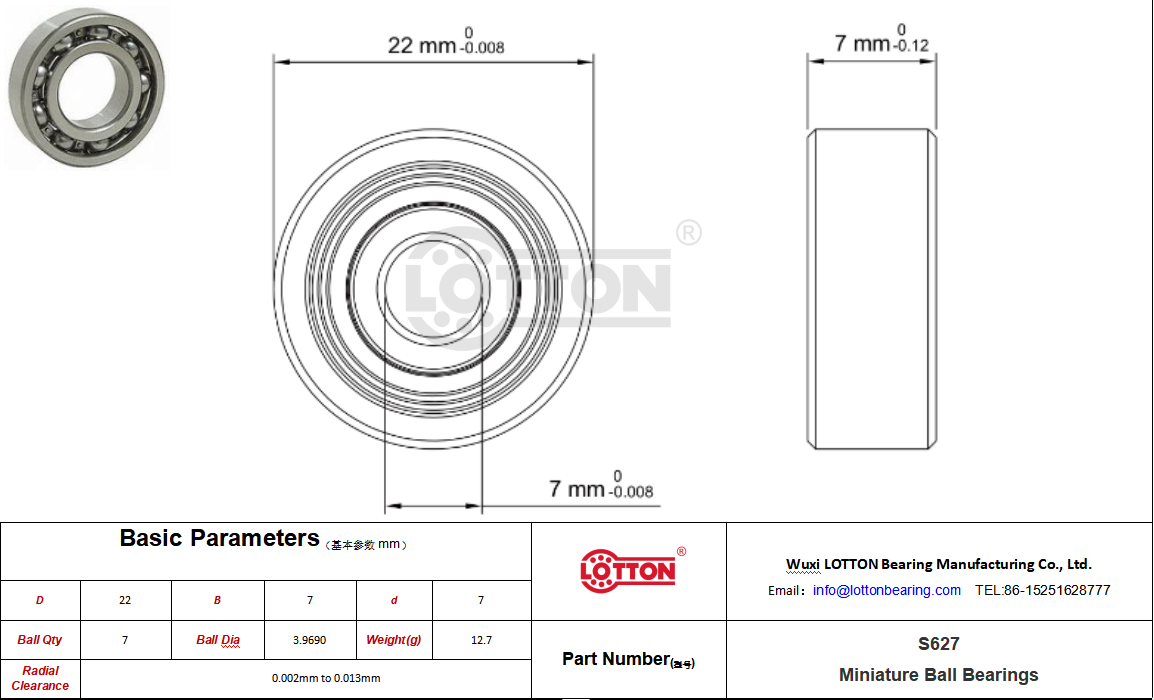

| Product Number | S627 Bearing |
| metering system | Metric system |
| Bearing type | ball |
| load direction | Radial |
| structure | single column |
| Inner ring type | Standard type |
| Seal type | open |
| inside diameter | 7 mm |
| Inner diameter tolerance | -0.008mm to 0 |
| outer diameter | 22 mm |
| outer diameter tolerance | -0.008mm to 0 |
| width | 7 mm |
| Width Tolerance | -0.12mm to 0 |
| ferrule material | 440C stainless steel |
| ball material | 440C stainless steel |
| cage material | 300 series stainless steel |
| dynamic radial load | 565.875 lbf |
| static radial load | 223.425 lbf |
| Maximum speed | 27 |
| lubricant | Lubricated |
| installation method | push-in |
| temperature range | -30° to 110°C |
| ABEC grade | ABEC1 (ABEC3/5/7 optional) |
| Radial clearance class | MC3 (available in MC1/2/4/5/6) |
| Clearance range | 0.002mm to 0.013mm |
| RoHS | conform to |
| REACH | conform to |
| Ball diameter | 3.9690mm |
| number of balls | 7 |
| weight | 12.7g |
