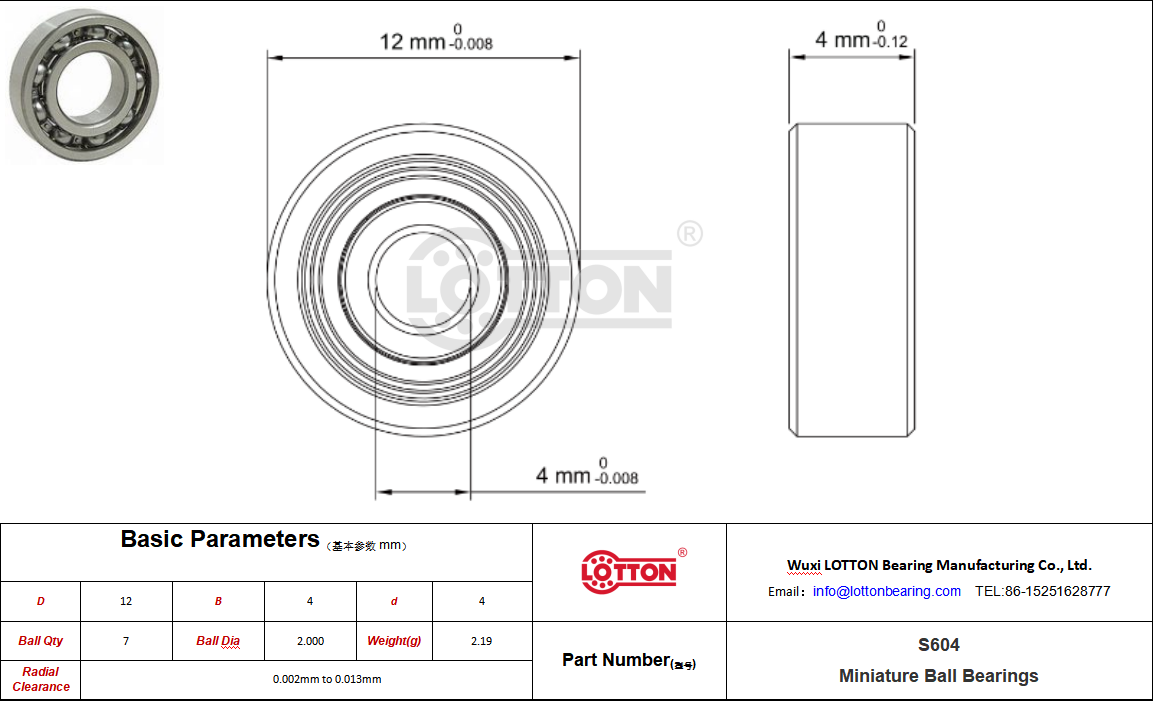

S604 Bearing

Product Number	S604 Bearing
metering system	Metric system
Bearing type	ball
load direction	Radial
structure	single row
Inner ring type	Standard type
Seal type	open
inside diameter	4 mm
Inner diameter tolerance	-0.008mm to 0
outer diameter	12 mm
outer diameter tolerance	-0.008mm to 0
width	4 mm
Width Tolerance	-0.12mm to 0
ferrule material	440C stainless steel
ball material	440C stainless steel
cage material	300 series stainless steel
dynamic radial load	164.925 lbf
static radial load	56.7 lbf
Maximum speed	43.2
lubricant	Lubricated
installation method	push-in
temperature range	-30° to 110°C
ABEC grade	ABEC1 (ABEC3/5/7 optional)
Radial clearance class	MC3 (available in MC1/2/4/5/6)
Clearance range	0.002mm to 0.013mm
RoHS	conform to
REACH	conform to
Ball diameter	2.0000mm
number of balls	7
weight	2.19g
