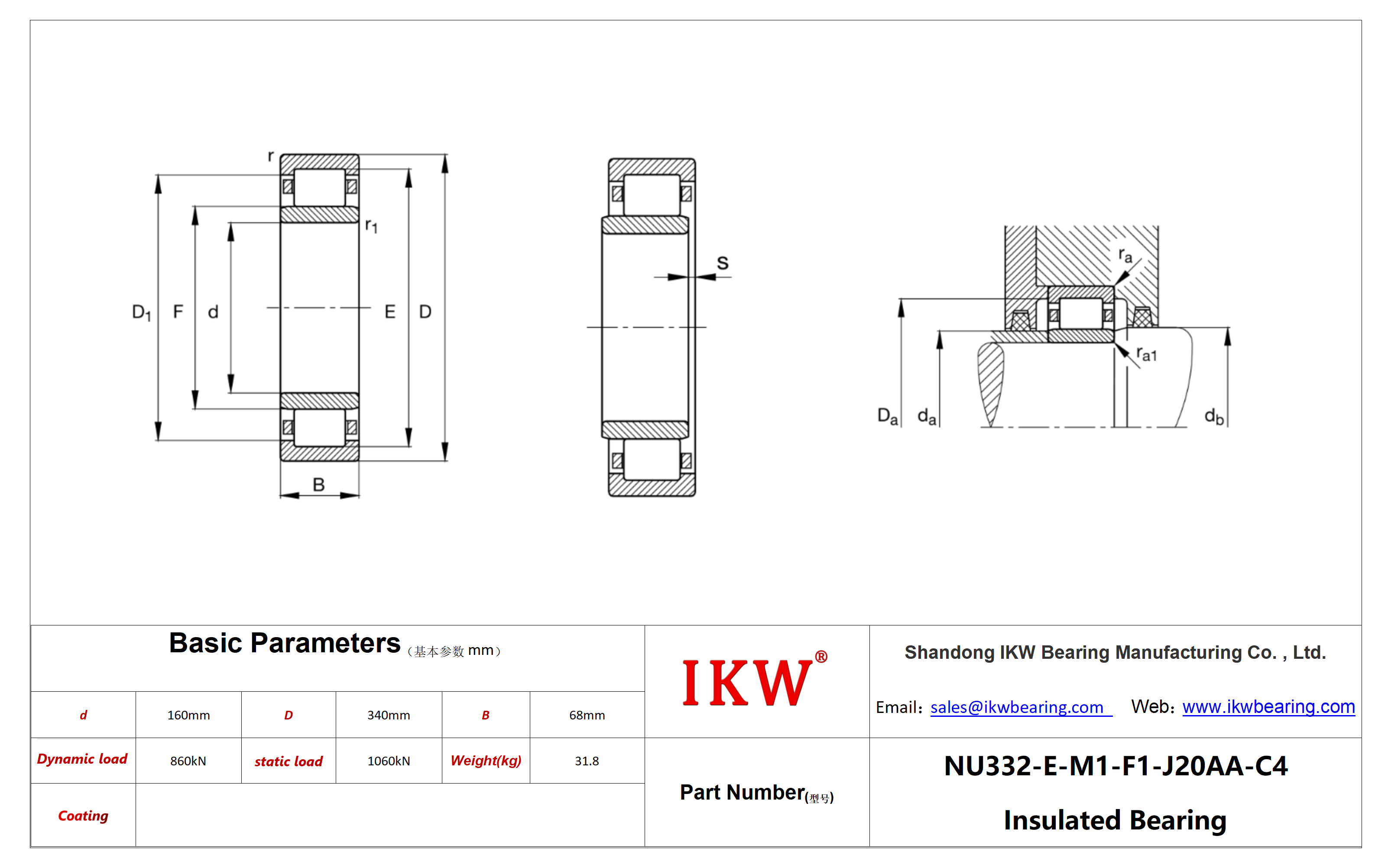

| Product Number | NU332-E-M1-F1-J20AA-C4 Bearing |
| Bore diameter(d) | 160 mm |
| Outside diameter(D) | 340 mm |
| Width(B) | 68 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 860.000 N |
| Basic static load rating(Cor) | 1.060.000 N |
| Radial internal clearance | C4 |
| Limiting speed(nG) | 3.000 1/min |
| da min | 177 mm |
| Da max | 323 mm |
| ra max | 3 mm |
| Weight(mass) | 31,8 kg |
| rmin | 4 mm |
| D1 | 286 mm |
| Reference speed(nϑr) | 1.770 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU332-E-M1-F1-J20AA-C4 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU332.E.M1.F1.J20AA.C4 Bearing
