NU2372ECMA bearing

Product Number NU2372ECMA
System of Measurement Metric
Roller Bearing Type Cylindrical
For Load Direction Combined Radial and Thrust
Construction Single Row
Inner Ring Type With Inner Ring
Seal Type Open
Bore Dia 360 mm
Bore Dia Tolerance -0.04mm to 0
Outer Dia 750 mm
Outer Dia Tolerance -0.075mm to 0
Width 224 mm
Width Tolerance -0.4mm to 0
Shoulder Diameter Of Inner Ring
Shoulder Diameter Of Outer Ring 617 mm
Raceway Diameter Of Inner Ring 465 mm
Chamfer Dimension r1,2 7.5 mm
Chamfer Dimension r3,4
Permissible Axial Displacement 10 mm
Ring Material 52100 Chrome Steel
Roller Material 52100 Chrome Steel
Dynamic Load Rating 5010 kN
Static Load Rating 8150 kN
Max Speed (X1000 rpm) 1
Lubrication Grease, Oil
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Weight 510 kg
PRINT

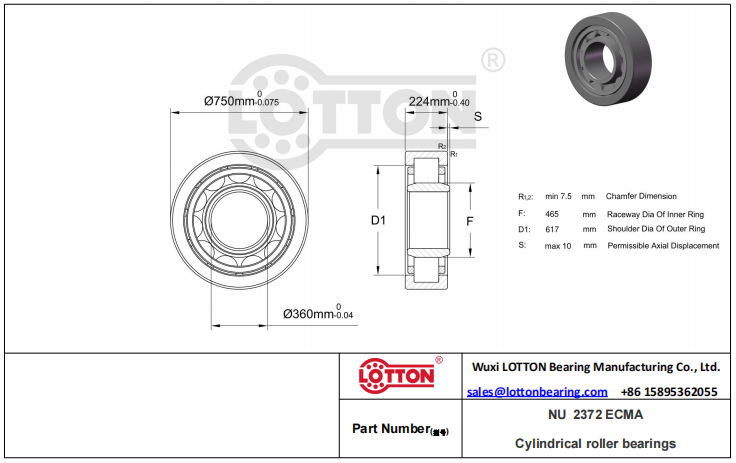

DETAILED DRAWING DOWNLOAD
