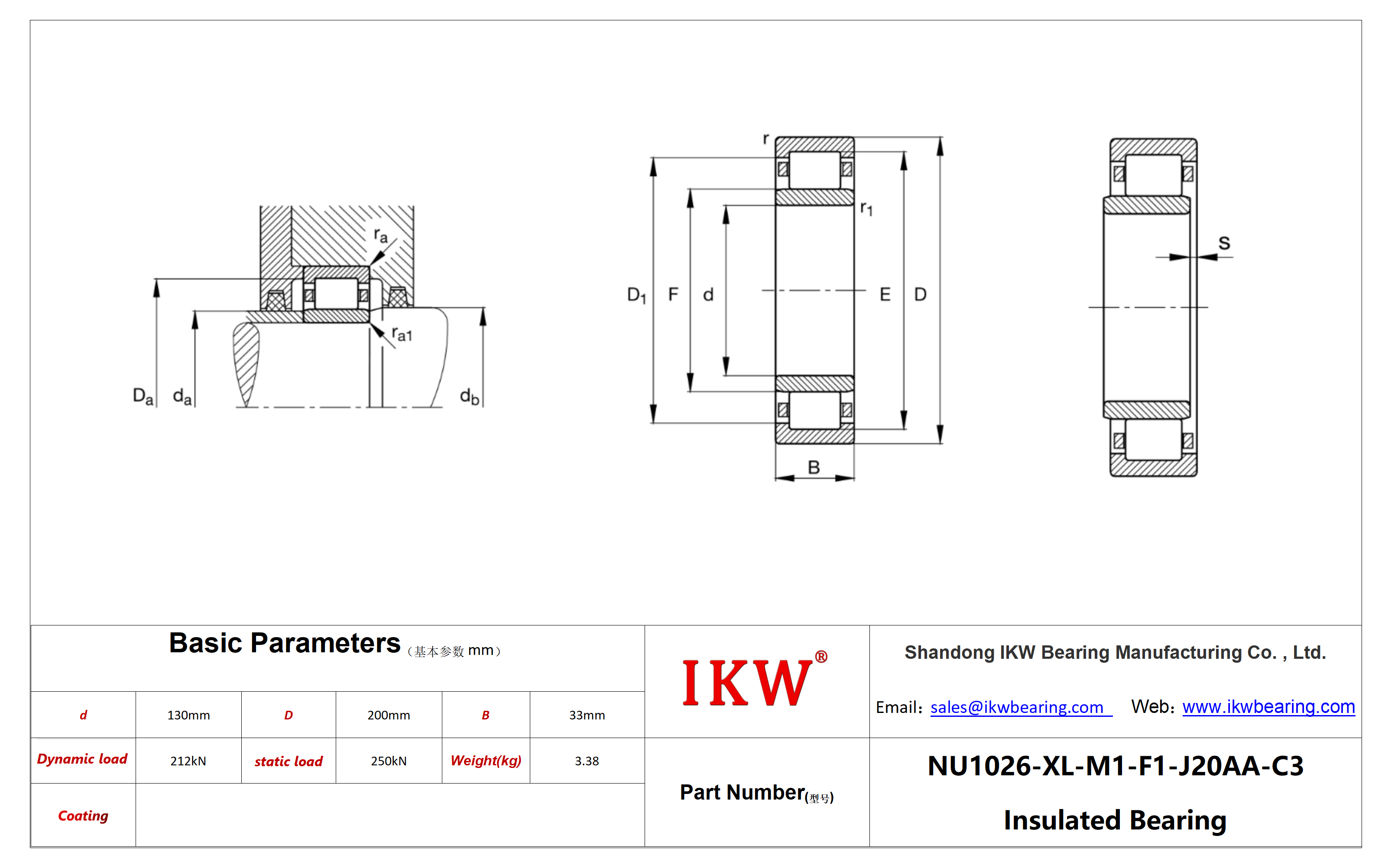

| Product Number | NU1026-XL-M1-F1-J20AA-C3 Bearing |
| Bore diameter(d) | 130 mm |
| Outside diameter(D) | 200 mm |
| Width(B) | 33 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 130 mm |
| Basic static load rating(Cor) | 200 mm |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 6.500 1/min |
| da min | 136 mm |
| Da max | 191 mm |
| ra max | 2 mm |
| Weight(mass) | 3,38 kg |
| rmin | 2 mm |
| D1 | 175,9 mm |
| Reference speed(nϑr) | 3.500 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU1026-XL-M1-F1-J20AA-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU1026.XL.M1.F1.J20AA.C3 Bearing
