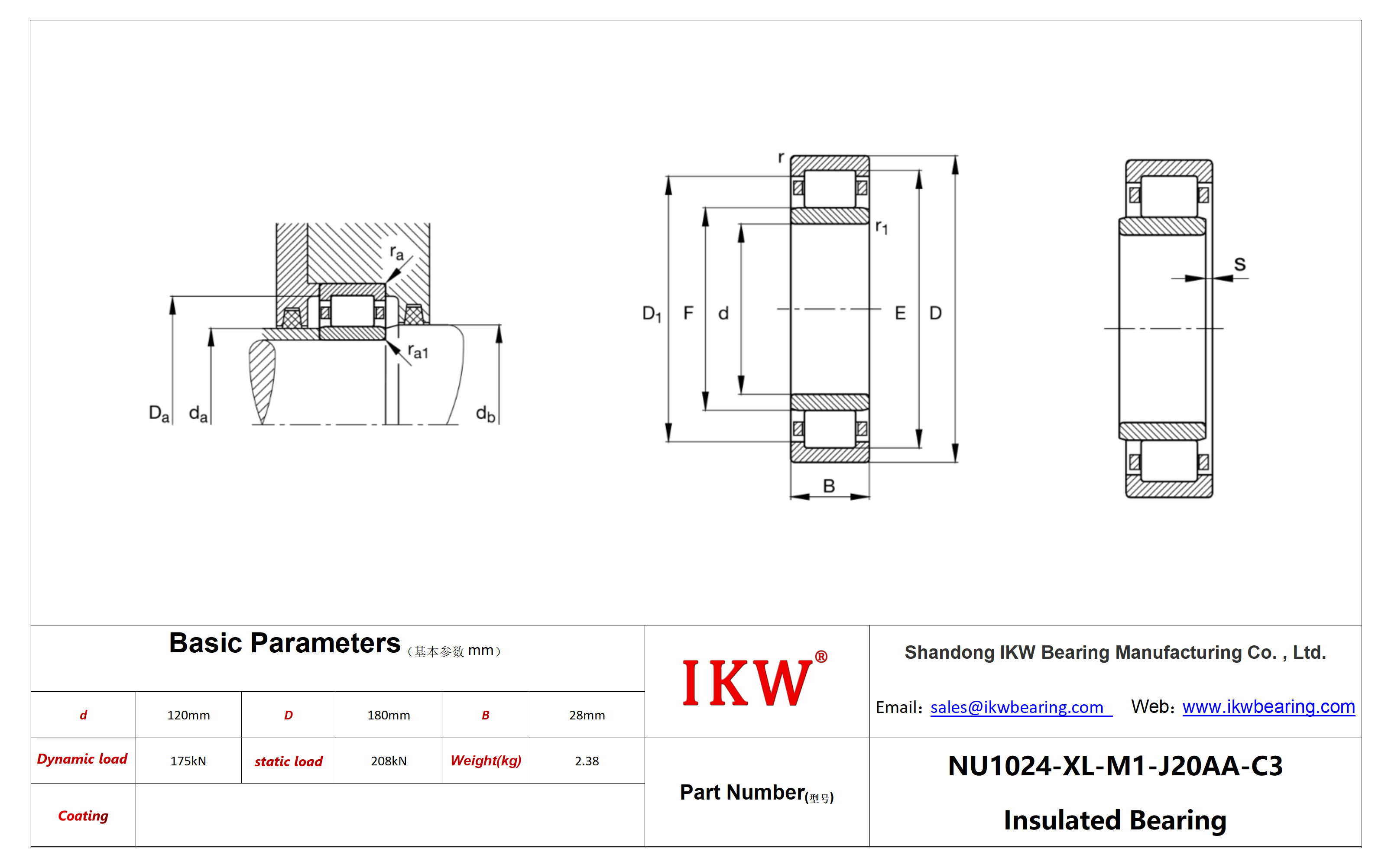

| Product Number | NU1024-XL-M1-J20AA-C3 Bearing |
| Bore diameter(d) | 133,35 mm |
| Bore diameter(d) | 120 mm |
| Outside diameter(D) | 234,95 mm |
| Outside diameter(D) | 180 mm |
| Width(B) | 63,5 mm |
| Width(B) | 28 mm |
| Cage | Standard |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 610.000 N |
| Basic dynamic load rating(Cr) | 175.000 N |
| Basic static load rating(Cor) | 810.000 N |
| Basic static load rating(Cor) | 208.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 3.550 1/min |
| Limiting speed(nG) | 7.300 1/min |
| da min | 126 mm |
| Da max | 221 mm |
| Da max | 171 mm |
| ra max | 9,7 mm |
| ra max | 2 mm |
| Weight(mass) | 11 kg |
| Weight(mass) | 2,38 kg |
| d1 | 178 mm |
| rmin | 9,7 mm |
| rmin | 2 mm |
| D1 | 159,7 mm |
| Reference speed(nϑr) | 2.180 1/min |
| Reference speed(nϑr) | 3.550 1/min |
| Tmin | -30 °C |
| Tmin | -30 °C |
| Tmax | 200 °C |
| Tmax | 150 °C |
NU1024-XL-M1-J20AA-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU1024.XL.M1.J20AA.C3 Bearing
