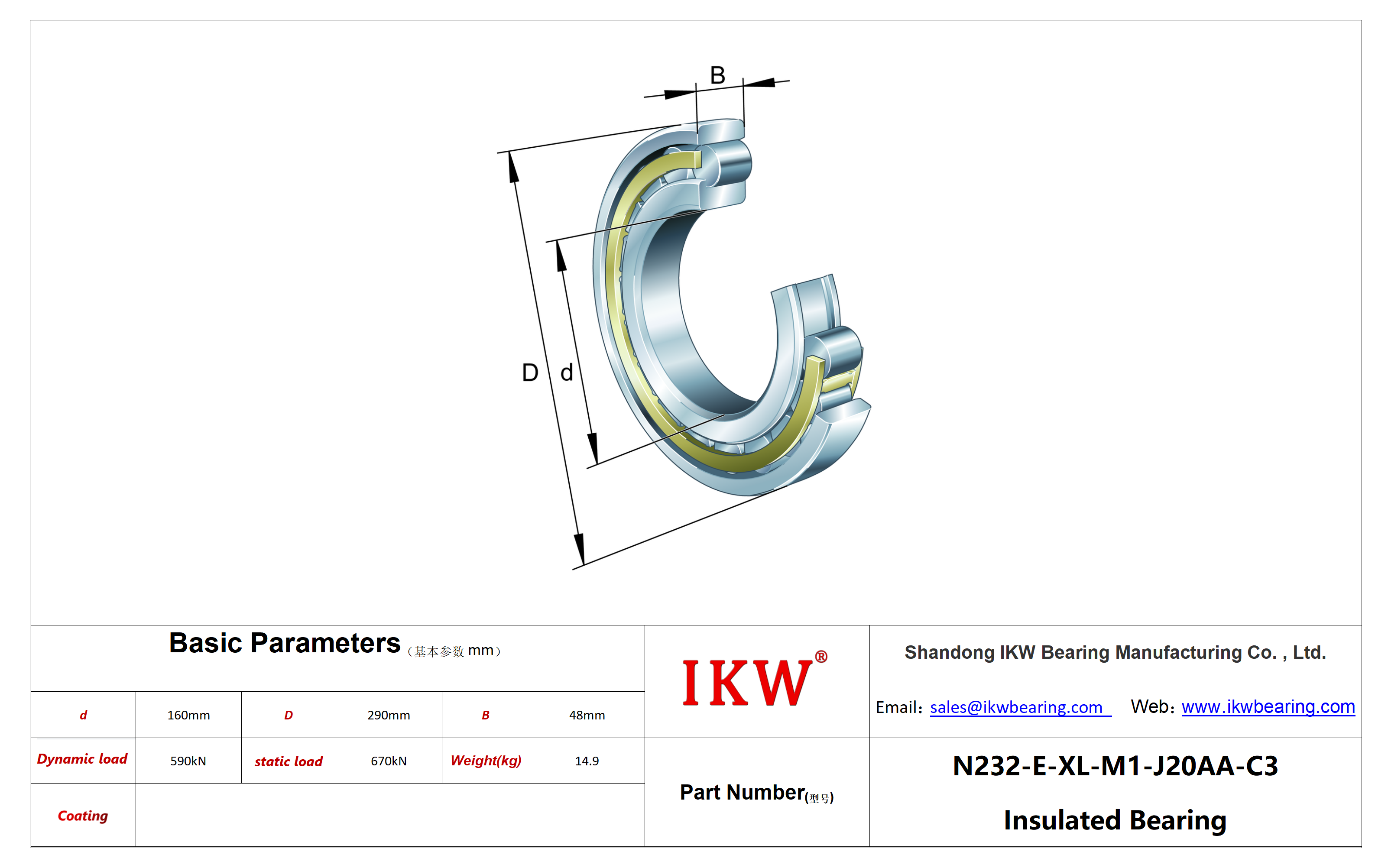

| Product Number | N232-E-XL-M1-J20AA-C3 Bearing |
| Bore diameter(d) | 160 mm |
| Outside diameter(D) | 290 mm |
| Width(B) | 48 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 590.000 N |
| Basic static load rating(Cor) | 670.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 4.200 1/min |
| Lubricant | Limiting speed for oil lubrication |
| da min | 174 mm |
| Da max | 276 mm |
| ra max | 2,5 mm |
| Weight(mass) | 14,9 kg |
| rmin | 3 mm |
| Tmin | -30 °C |
| Tmax | 150 °C |
N232-E-XL-M1-J20AA-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|N232.E.XL.M1.J20AA.C3 Bearing
