N211ECP bearing

Product Number N211ECP
System of Measurement Metric
Roller Bearing Type Cylindrical
For Load Direction Combined Radial and Thrust
Construction Single Row
Inner Ring Type With Inner Ring
Seal Type Open
Bore Dia 55 mm
Bore Dia Tolerance -0.15mm to 0
Outer Dia 100 mm
Outer Dia Tolerance -0.015mm to 0
Width 21 mm
Width Tolerance -0.15mm to 0
Shoulder Diameter Of Inner Ring 70.8 mm
Shoulder Diameter Of Outer Ring
Raceway Diameter Of Inner Ring
Chamfer Dimension r1,2 1.5 mm
Chamfer Dimension r3,4 1.1 mm
Permissible Axial Displacement 1 mm
Ring Material 52100 Chrome Steel
Roller Material 52100 Chrome Steel
Dynamic Load Rating 96.5 kN
Static Load Rating 95 kN
Max Speed (X1000 rpm) 8
Lubrication Grease, Oil
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Weight 0.68kg
Raceway Diameter Of Outer Ring(E) 90 mm
PRINT

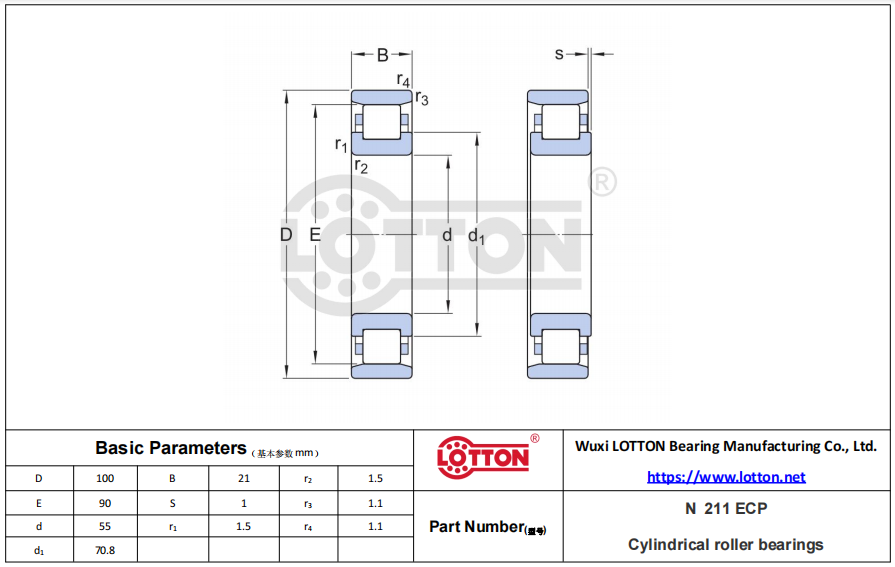

DETAILED DRAWING DOWNLOAD
