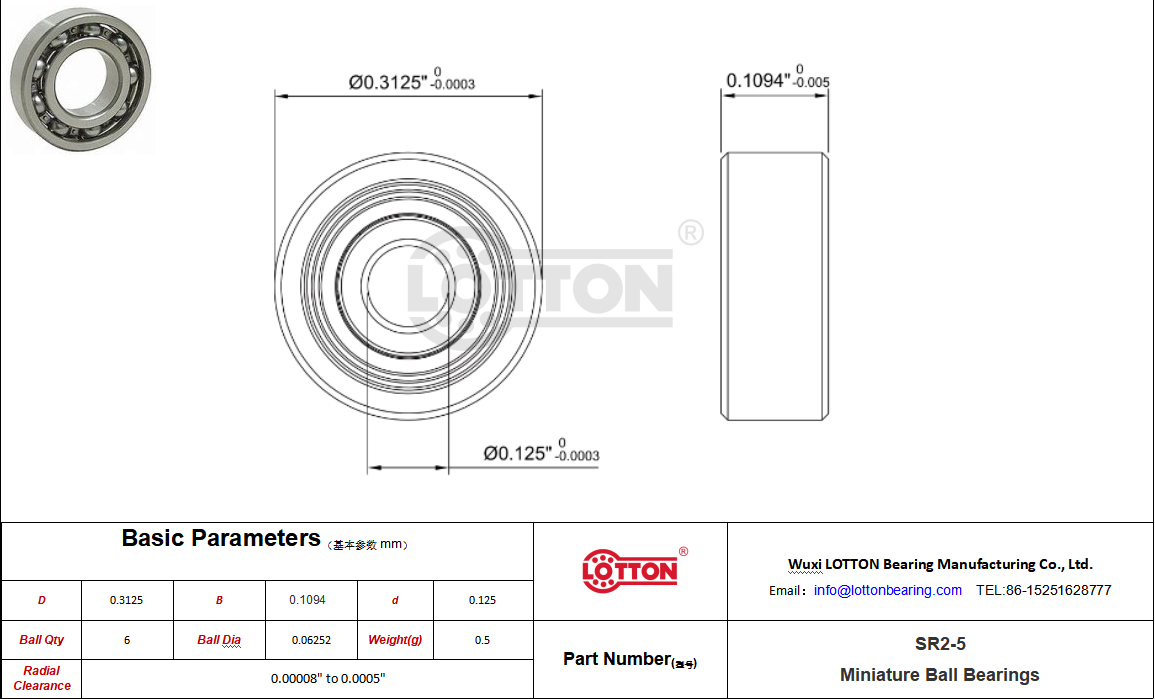

| Product Number | SR2-5 Bearing |
| System of Measurement | |
| System of Measurement | imperial |
| Bearing Type | |
| Bearing Type | ball |
| For Load Direction | |
| For Load Direction | Radial |
| Construction | |
| Construction | single row |
| Seal Type | |
| Seal Type | open |
| Bore Dia | |
| Bore Dia | 0.125" |
| Bore Dia Tolerance | |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | |
| Outer Dia | 0.3125" |
| Outer Dia Tolerance | |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width(B) | |
| Width(B) | 0.1094" |
| Width Tolerance | |
| Width Tolerance | -0.005" to 0" |
| Ring Material | |
| Ring Material | 440C stainless steel |
| Ball Material | |
| Ball Material | 440C stainless steel |
| Cage Material | |
| Cage Material | 300 series stainless steel |
| Dynamic Radial Load | |
| Dynamic Radial Load | 96 lbf |
| Static Radial Load | |
| Static Radial Load | 29 lbf |
| Max Speed (X1000 rpm) | |
| Max Speed (X1000 rpm) | 54 |
| Lubrication | |
| Lubrication | Lubricated |
| Shaft Mount Type | |
| Shaft Mount Type | push-in |
| Temperature Range | |
| Temperature Range | -86 to 230°F |
| ABEC Rating | |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | |
| Radial Clearance Trade No. | MC3 (Available in MC1/2/4/5/6) |
| Radial Clearance | |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | |
| RoHS | conform to |
| REACH | |
| REACH | conform to |
| Ball Dia | |
| Ball Dia | 0.06252" |
| Ball Qty | |
| Ball Qty | 6 |
| Weight | |
| Weight | 0.5 |
| Inner ring type | |
| Inner ring type | Standard type |
