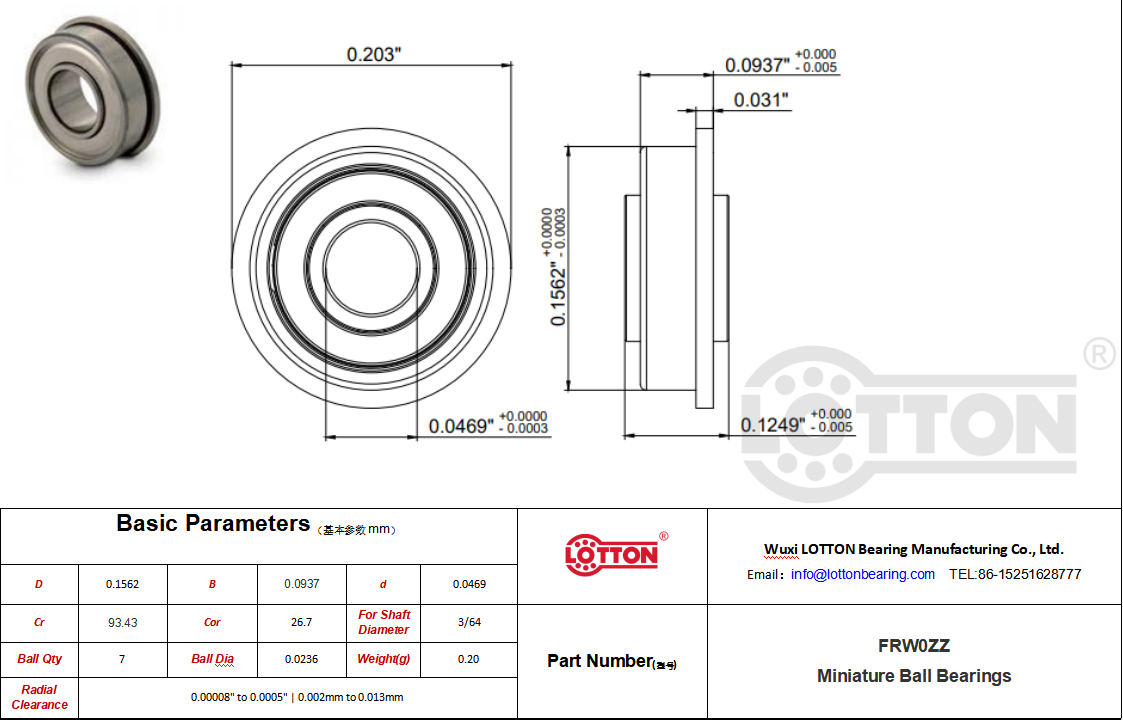

| Product Number | FRW0ZZ Bearing |
| metering system | imperial |
| Bearing type | ball |
| load direction | Radial |
| structure | single column |
| Inner ring type | lengthen |
| Seal type | metal dust cover |
| inside diameter | 0.04688" |
| Inner diameter tolerance | -0.0003" to 0" |
| outer diameter | 0.15625" |
| outer diameter tolerance | -0.0003" to 0" |
| width | 0.0937" |
| Width Tolerance | -0.005" to 0" |
| Flange outer diameter | 0.203" |
| Flange thickness | 0.031" |
| Inner ring outer diameter | 0.081" |
| inner ring width | 0.1249" |
| ferrule material | 52100 chrome steel |
| ball material | 52100 chrome steel |
| cage material | 300 series stainless steel |
| dynamic radial load | 21 lbf |
| static radial load | 6 lbf |
| Maximum speed | 110 |
| lubricant | Lubricated |
| installation method | push-in |
| temperature range | -86 to 230°F |
| ABEC grade | ABEC1 (ABEC3/5/7 optional) |
| Radial clearance class | MC3 (available in MC1/2/4/5/6) |
| Clearance range | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball diameter | 0.0236" |
| number of balls | 7 |
| weight | 0.20g |
