CRM22A bearing

Product Number CRM22A
System of Measurement Metric
Roller Bearing Type Cylindrical
For Load Direction Combined Radial and Thrust
Construction Single Row
Inner Ring Type With Inner Ring
Seal Type Open
Bore Dia 69.85 mm
Bore Dia Tolerance +0.005mm to -0.008mm
Outer Dia 158.75 mm
Outer Dia Tolerance -0.033mm to -0.046mm
Width 34.925 mm
Width Tolerance -0.127mm to 0
Shoulder Diameter Of Inner Ring 99.2 mm
Shoulder Diameter Of Outer Ring
Raceway Diameter Of Inner Ring
Chamfer Dimension r1,2 3.2 mm
Chamfer Dimension r3,4 3.2 mm
Permissible Axial Displacement 2 mm
Ring Material 52100 Chrome Steel
Roller Material 52100 Chrome Steel
Dynamic Load Rating 212 kN
Static Load Rating 224 kN
Max Speed (X1000 rpm) 6
Lubrication Grease, Oil
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Weight 3.15 kg
Raceway Diameter Of Outer Ring(E) 138 mm
PRINT

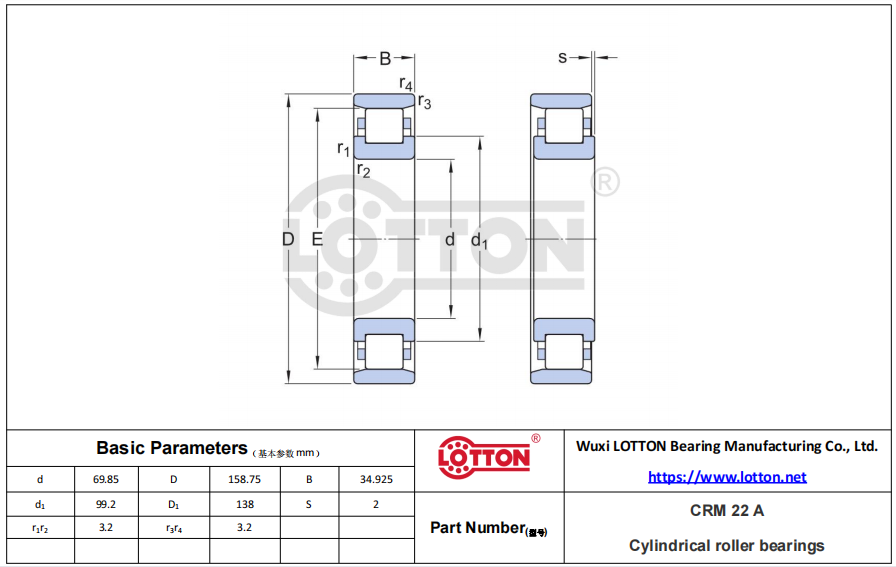

DETAILED DRAWING DOWNLOAD
