CRL10A bearing

Product Number CRL10A
System of Measurement Metric
Roller Bearing Type Cylindrical
For Load Direction Combined Radial and Thrust
Construction Single Row
Inner Ring Type With Inner Ring
Seal Type Open
Bore Dia 31.75 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 69.85 mm
Outer Dia Tolerance -0.013mm to 0
Width 17.462 mm
Width Tolerance -0.12mm to 0
Chamfer Dimension r1,2 1.6 mm
Chamfer Dimension r3,4 1.6 mm
Permissible Axial Displacement 1 mm
Ring Material 52100 Chrome Steel
Roller Material 52100 Chrome Steel
Dynamic Load Rating 44.6 kN
Static Load Rating 40 kN
Max Speed (X1000 rpm) 12
Lubrication Grease, Oil
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Weight 0.28kg
Raceway Diameter Of Outer Ring(E) Outer Ring(E) 62.8 mm
Shoulder Diameter Of Inner Ring 45.4 mm
PRINT

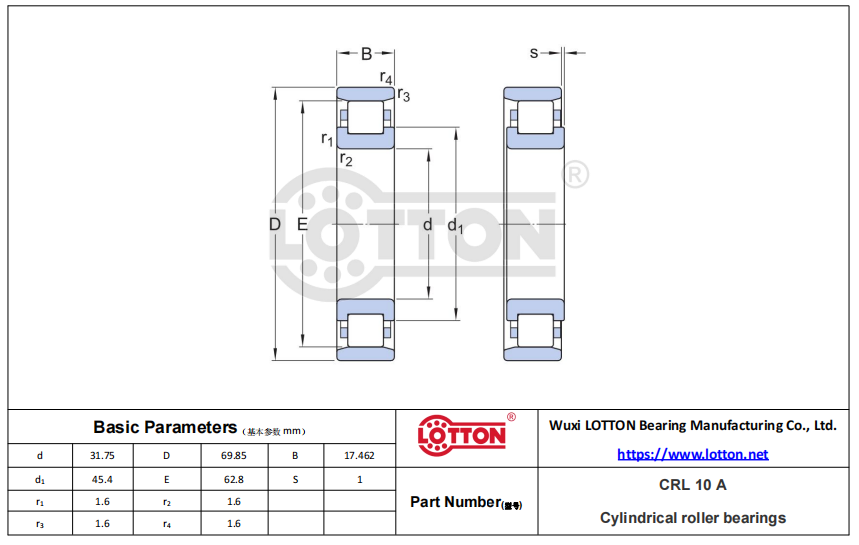

DETAILED DRAWING DOWNLOAD
