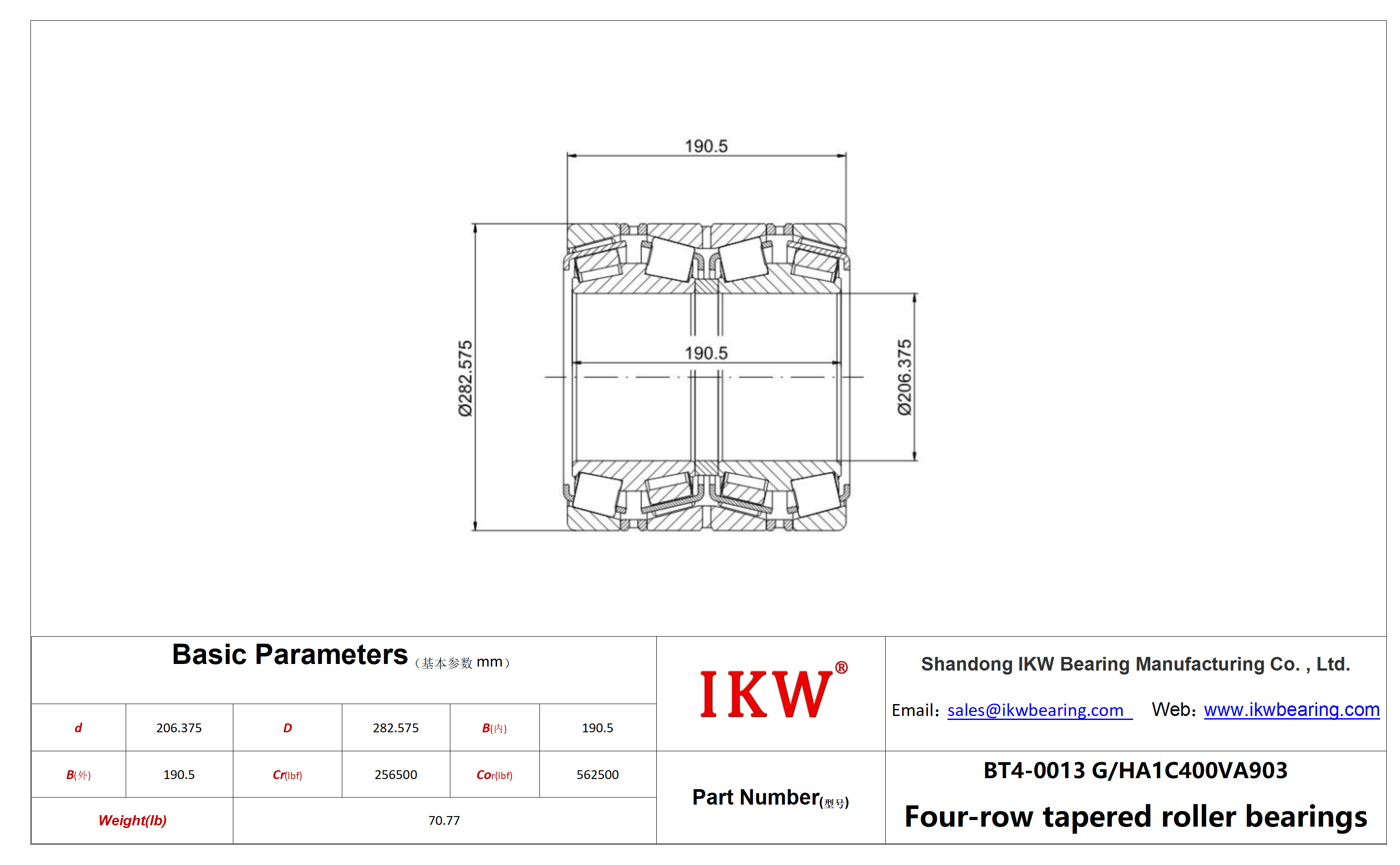

| Product Number | BT4-0013 G/HA1C400VA903 Bearing |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| Type | Bearing |
| For Load Direction | Combined Radial and Thrust |
| Construction | Four-row |
| Seal Type | Open |
| Bore Dia (d) | 206.375 mm |
| Bore Dia Tolerance | -0.03mm to 0 |
| Outer Dia (D) | 282.575 mm |
| Outer Dia Tolerance | -0.035mm to 0 |
| Total Bearing Width Over Inner Rings | 190.5 mm |
| Total Bearing Width Over Outer Rings | 190.5 mm |
| Ring Material | 52100 Chrome Steel |
| Cage Material | Steel |
| Roller Material | 52100 Chrome Steel |
| Dynamic Radial Load | 256500 lbf |
| Static Radial Load | 562500 lbf |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 70.77 lb |
| Radial Clearance | Standard (Available in C3/C4/C5) |
BT4-0013 G/HA1C400VA903 Bearing|Rolling mill bearings | four row tapered roller bearings | tapered roller bearings|BT4-0013 G/HA1C400VA903_Bearing
