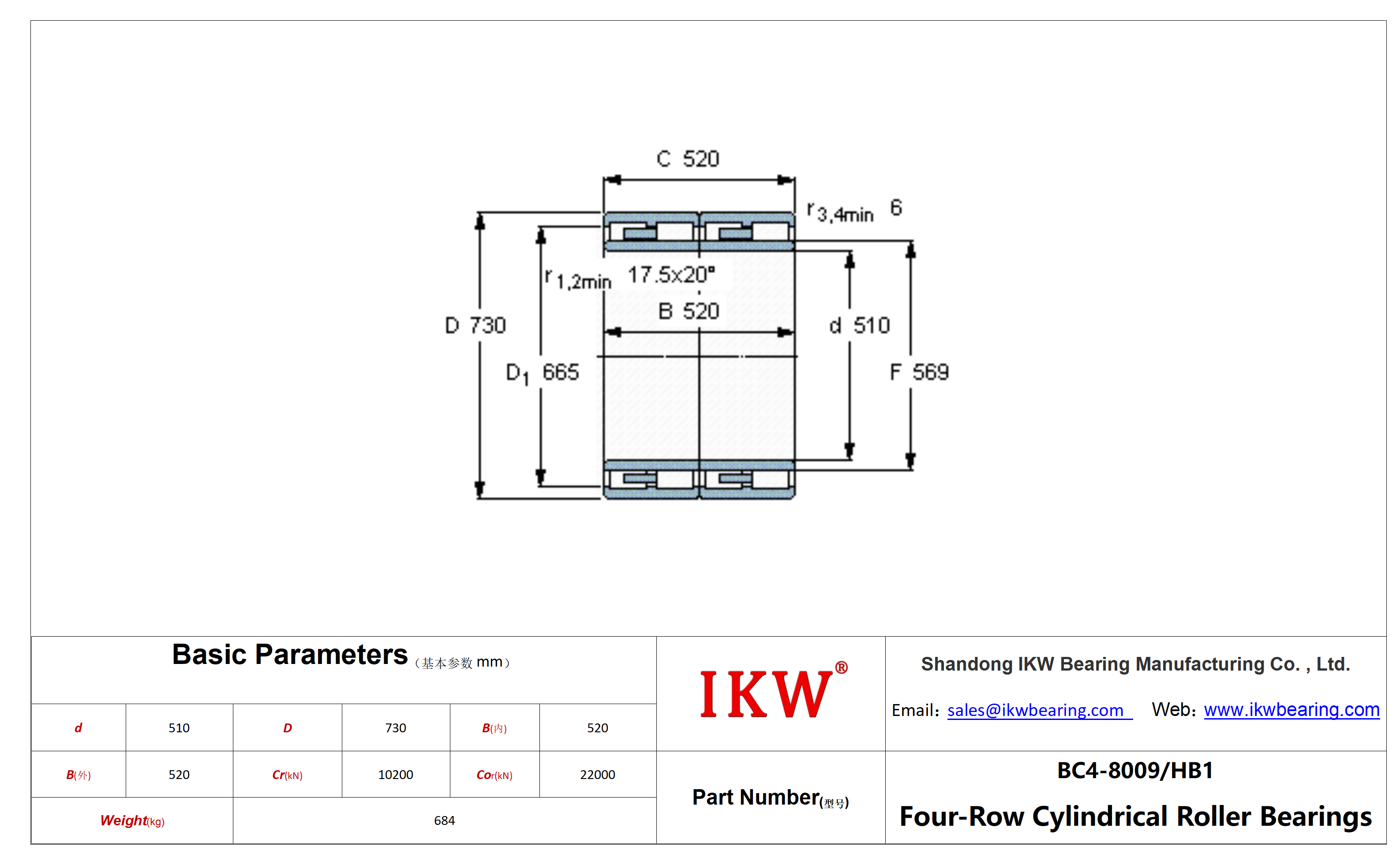

| Product Number | BC4-8009/HB1 Bearing |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Bore Dia (d) | 510 mm |
| Outer Dia (D) | 730 mm |
| Total Bearing Width Over Inner Ring(S)(B) | 520 mm |
| Total Bearing Width Over Outer Ring(S)(C) | 520 mm |
| Dynamic Radial Load | 10200 kN |
| Static Radial Load | 22000 kN |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Corner Radius/Chamfer Inner Ring(r1,2)(min#) | 17.5 mm |
| Chamfer Dimension On The Outer Ring(r3,4)(min#) | 6 mm |
| Dynamic Load Rating | 10200 kN |
| Static Load Rating | 22000 kN |
| Fatigue Load Limit(Pu) | 1660 kN |
| Static Load Rating | 10000 kN greater |
| Calculation Factor(Kr) | 560 |
| Mass Bearing | 684 kg |
| Raceway Diameter Inner Ring(F) | 569 mm |
| Design Variant/Feature | BC4.7/W33WI |
| Width of Annular Groove(B) | 16.7 mm |
| Chamfer Angle Inner Ring(α) | 20 ° |
| Diameter Lubrication Hole(Outer Ring)(K) | 9 mm |
| Outer Ring Shoulder Diameter(D1) | 665.3 mm |
