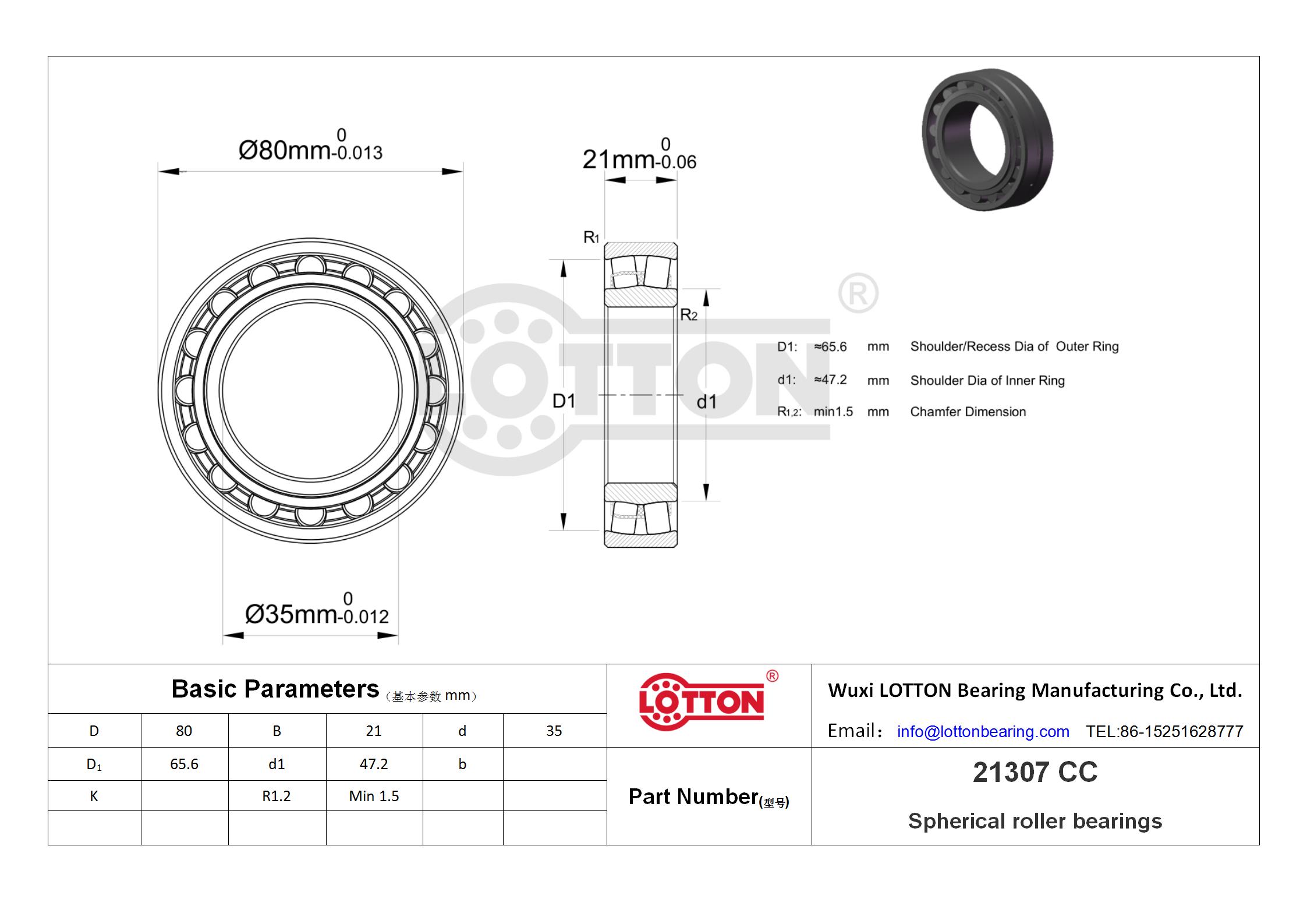

| Product Number | 21307 CC |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Spherical |
| Bore Type | Straight Bore |
| For Load Direction | Combined Radial and Thrust |
| Construction | Double Row |
| Seal Type | Open |
| Bore Dia | 35 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia | 80 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 21 mm |
| Width Tolerance | -0.06mm to 0 |
| Shoulder Dia Of Inner Ring | 47.2 mm |
| Shoulder/Recess Dia Of Outer Ring | 65.6 mm |
| Width Of Lubrication Groove | |
| Diameter Of Lubrication Hole | |
| Chamfer Dimension | min.1.5 mm |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 79.2 kN |
| Static Radial Load | 72 kN |
| Max Speed (X1000 rpm) | 9.5 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHs | Compliant |
| REACH | Compliant |
| Weight | 0.54 kg |
| LOTTON | 21307 CC |
| SKF | 21307 CC |
| FAG | 21307-E1-TVPB |
| NSK | 21307CDE4 |
| TIMKEN | 21307EJW33 |
